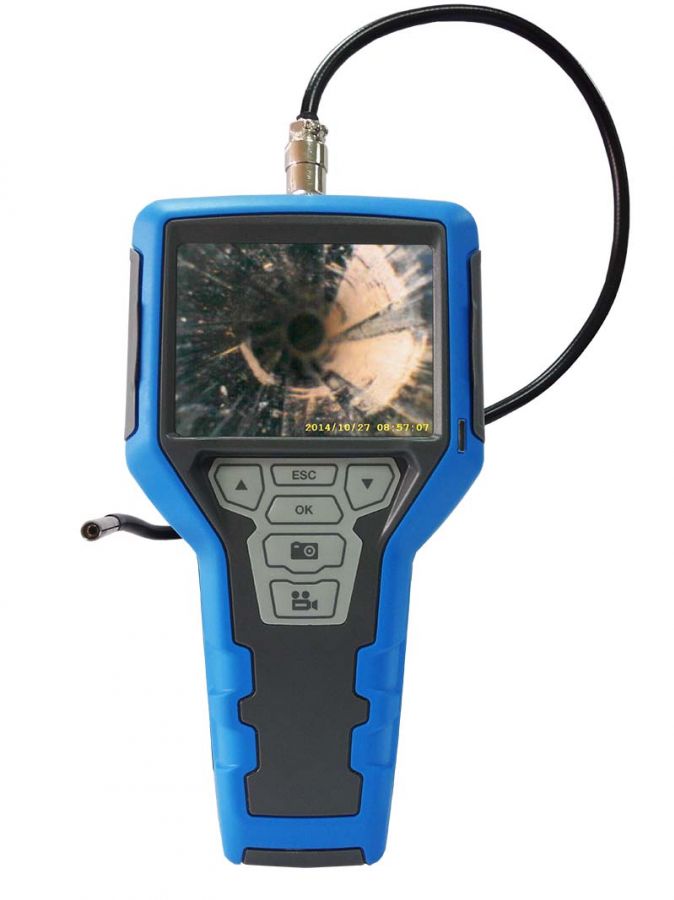

TX101-39100-5

Endoscope(Borescope)

Specification:

Power
DC5V
Display
3.5”TFT LCD Monitor 640 x 480 pixels
Interface
Mini USB 1.1/ AV out
Battery
Rechargeable Li-ion Battery (3.7V  2200mAh)
Video out format
NTSC & PAL(640 x 480 Video to TV)
Recording medium
4G SD card (the capacity can be used up 32G)
Still image storage format
JPEG (640x480)
Video Recording format
AVI (640x480)
Language
Support 15 languages
Zoom
2 times digital Zoom in and Zoom out
Mirror
Reflecting Object Surface
Illuminant intensity
Adjustable
Photo/Video replay
Support
2 Photos comparison
Support
Certifications
CE / FCC



Cable:

Tub OD
3.9mm
Waterproof
IP67
Length
1M
Resolution
320 x 240 Pixels
Exposure
Automatic
Optical format
CMOS image sensor
Housing
Stainless Steel + PVC
Field of View(FOV)
56 ゚
Depth of Field (DOF)
5mm
Brightness Control
Manual
Lamp Type
LED Lamp
Output
30000 Lux at 1cm
Tip Operating Temperature
-25º to 60º C (-13º to 140º F)
Relative Humidity
95% max
Housing
Stainless Steel
Auto White Balance
Automatic
Video Format
NTSC
Interface
Composite Video

 3.9mm camera with 45 degree mirror- 5.56mm Gun Barrel Inspection
