Texim Taiwan


Focus on Micro Camera

TX101-2A41

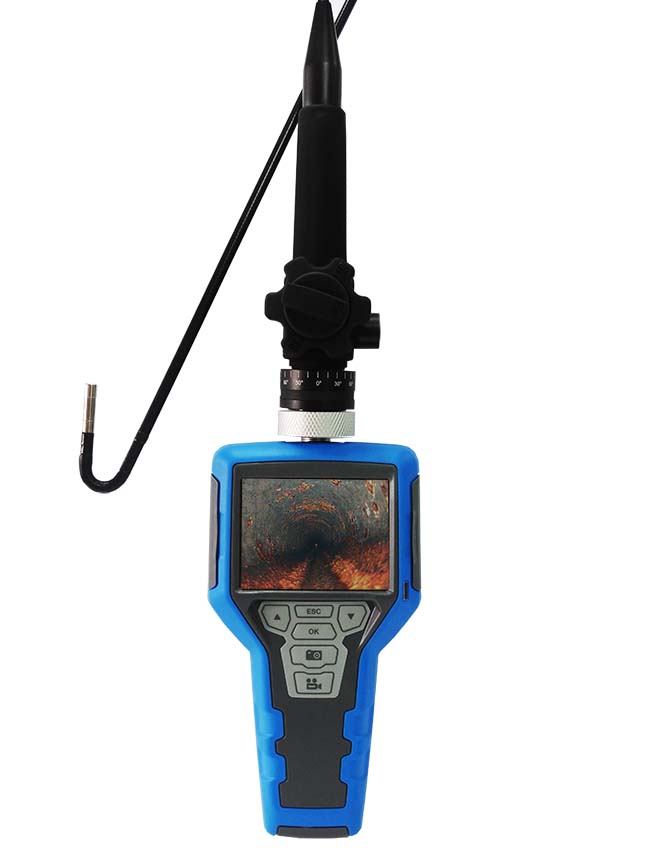

Endoscope(Borescope)

Power
DC5V
Display
3.5”TFT LCD Monitor 640 x 480 pixels
Interface
Mini USB 1.1/ AV out
Battery
Rechargeable Li-ion Battery (3.7V 2300mAh)
Video out format
NTSC & PAL(640 x 480 Video to TV)
Recording medium
4G SD card (the capacity can be used up 32G)
Still image storage format
JPEG (640 x 480)
Video Recording format
AVI (640 x 480)
Language
Support 15 languages
Zoom
2 times digital Zoom in and Zoom out
Mirror
Reflecting Object Surface
Illuminant intensity
Adjustable
Photo/Video replay
Support
2 Photos comparison
Support
Certifications
CE / FCC

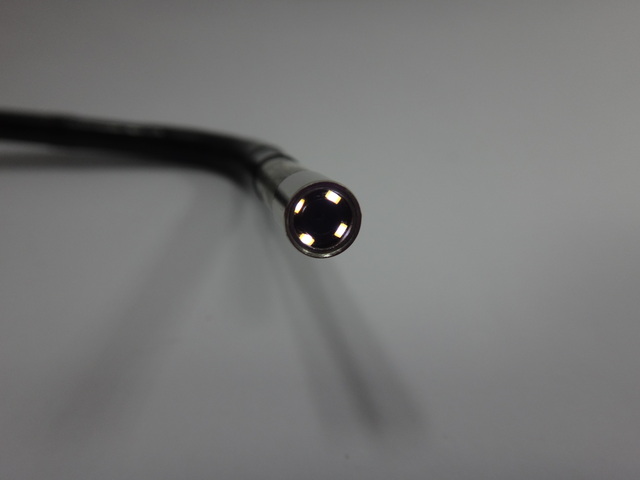

Camera Cable

Image sensor
 CMOS Image sensor
OD types
4mm
Cable Length
1M
Exposure
Automatic
White balance
Fix
Field of View
56 drgree
Resolution types
320(H) x 240(V)
Focus distance
SF1.5~5cm
Light source
4 Bright LED light
Articulation
150° in each direction
Operating Temperature
-25º to 60º C (-13º to 140º F)
Waterproof
IP67(Insertion tube and tip)

Light Source

         Number of lamps
        4
   Weight
          0.34 kg
     Brightness Control
          Manual
   Lamp Type
         LED
      Lamp Output
          2000 Lux at 20mm
  Lamp Life
         1000 hrs., median
