Texim Taiwan


Focus on Micro Camera

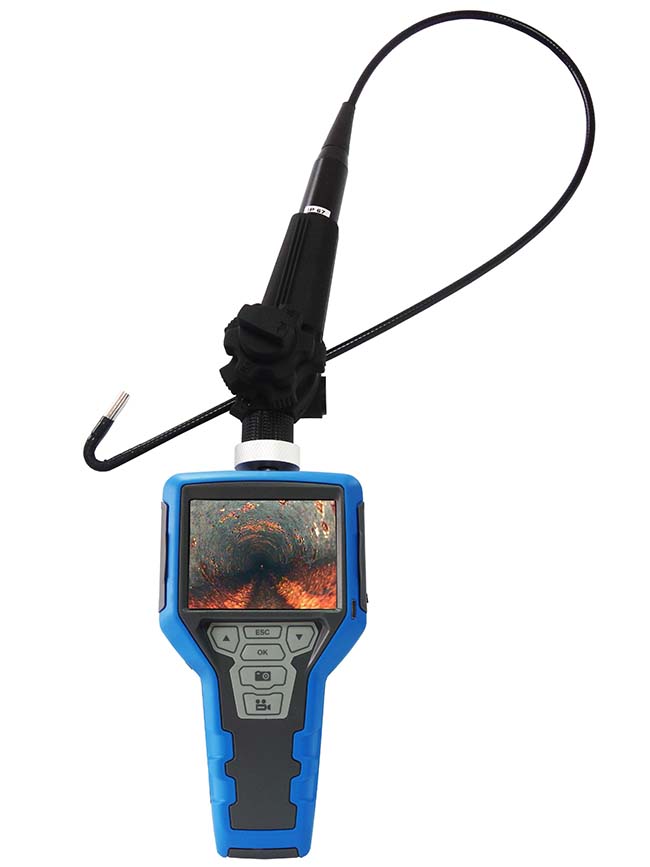

TX101-4A61

Endoscope(Borescope)

Power
DC5V
Display
3.5”TFT LCD Monitor 640 x 480 pixels
Interface
Mini USB 1.1/ AV out
Battery
Rechargeable Li-ion Battery (3.7V 2200mAh)
Video out format
NTSC & PAL(640 x 480 Video to TV)
Recording medium
4G SD card (the capacity can be used up 32G)
Still image storage format
JPEG (640x480)
Video Recording format
AVI (640x480)
Language
Support 15 languages
Zoom
2 times digital Zoom in and Zoom out
Mirror
Reflecting Object Surface
Illuminant intensity
Adjustable
Photo/Video replay
Support
2 Photos comparison
Support



Camera Cable

Image sensor
CMOS Image sensor
OD types
6mm
Cable Length
1M
Exposure
Automatic
White balance
Fix
Field of View
67 drgree
Resolution types
640(H) x 480(V)
Camera OD(diameter)
5.5mm
Focus distance
SF2~8cm
Light source
4 Bright LED light

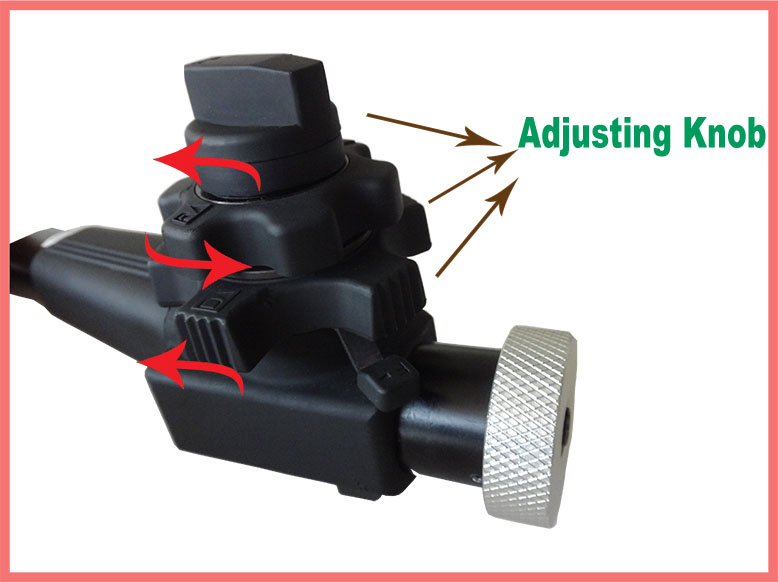

Articulation
360°
Operating Temperature
-25º to 60º C (-13º to 140º F)
Waterproof
IP67(Insertion tube and tip)

Light Source

Number of lamps
4
Weight
0.64 kg
Brightness Control
Manual
Lamp Type
LED
Lamp Output
2500 Lux at 20.6mm
Lamp Life
1000 hrs., median
