TX101-2515W
| System Device |
| Power |
DC5V |
| Display |
3.5 inches TFT LCD Monitor |
| Resolutions |
640 x 480 pixels |
| Interface |
Mini USB 1.1/ AV out |
| Battery |
Rechargeable Li-Ion Battery (3.7V 2350mAh) |
| Video Out Format |
NTSC & PAL (640 x 480 Video to TV) |
| Recording Medium |
8G SD card (The capacity can be used up to 32G) |
| Photo Resolution & Storage Format |
JPEG (640 x 480) |
| Video Resolution & Storage Format |
AVI (640 x 480) |
| Language |
Supports 15 Languages |
| Zoom |
2 times Digital Zoom in and Zoom out |
| Mirror |
Reflecting Object Surface |
| Illuminant Intensity |
Adjustable |
| Photo / Video Replay |
Supported |
| 2 Photos Comparison |
Supported |
| Camera Cable |
| Image Sensor |
CMOS |
| Tube OD |
25 mm |
| Cable Length |
15 M |
| Exposure |
Automatic |
| White Balance |
Automatic |
| Field of View |
73 degrees |
| Resolution |
725 x 575 pixels |
| Focus Distance |
5 to 100 cm |
| Pipe from DN |
40 to 120 mm |
| Operating Temperature |
-20 to 70 degrees Celsius |
| Relative Humidity |
95% max |
| Waterproof |
IP68(Insertion tube and tip) |
| Material |
Copper with nickel coating |
| Outer Sheathing |
Glass Fiber |
| Light Source |
Bright LED light |
| Lamp Type |
LED |
| Brightness Control |
Manual |
| Number of Lamps |

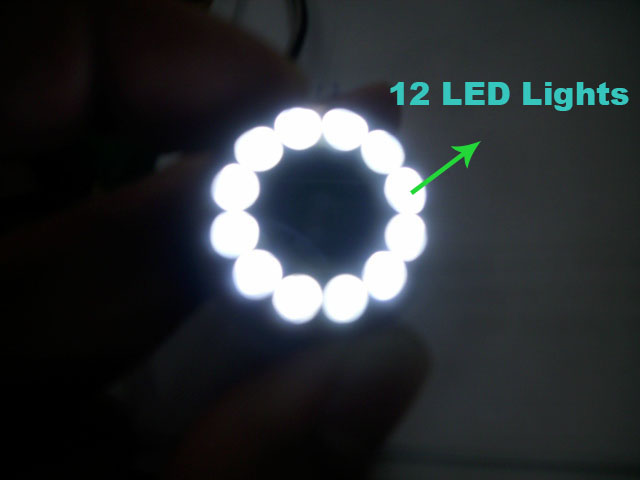

12 White LEDs 3500mcd |
| Lamp Output |
7300 Lux at 20 mm |
| Lamp Life |
10000 hours (average) |
| Power Supply |
DC 3.7V +/-5% |
|
|
|
