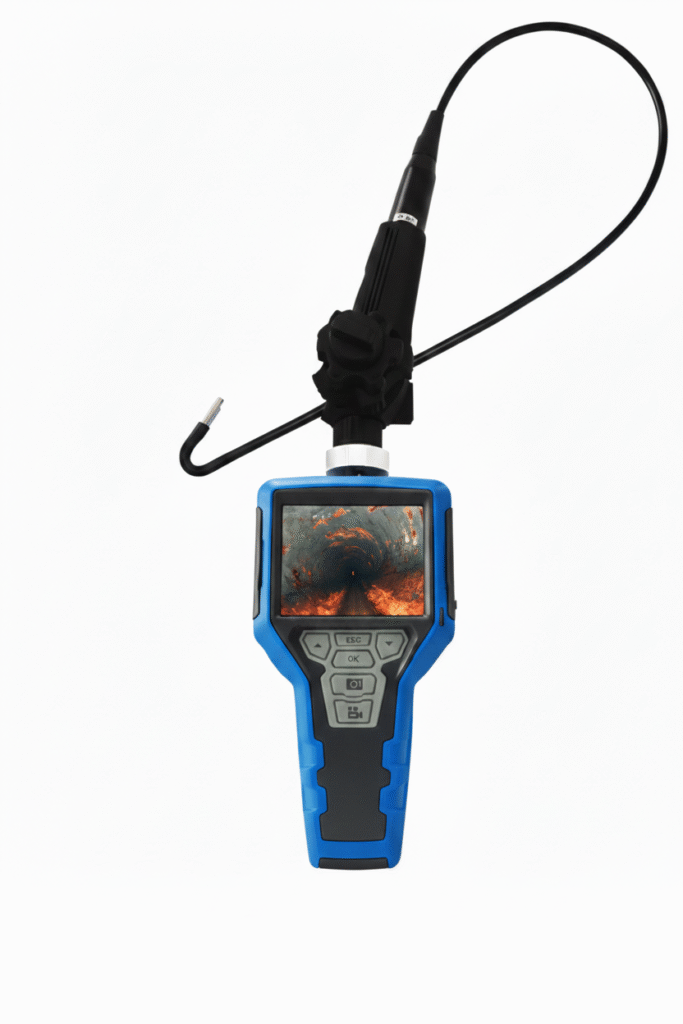

TX101-4A62
The TX101-4A62 is an advanced inspection system designed for total visual command in the most challenging industrial environments. Featuring an ultra-maneuverable 5.5mm 4-way articulating probe, it offers 360° omnidirectional navigation, allowing technicians to inspect deep internal cavities with unmatched flexibility. While this model features a high-durability cable available in lengths up to 3M, it delivers high-intensity illumination and a refined 720 x 525 resolution sensor. Equipped with a 3.5″ TFT LCD and high-output LED technology (3500 Lux), it ensures surgical precision for critical diagnostics in aerospace, automotive, and power generation sectors.
| System Device Specification | |
| Power | DC 5V |
| Display | 3.5" TFT LCD Monitor (640 x 480 pixels) |
| Battery | Rechargeable Li-Ion Battery (3.7V 2350mAh) |
| Interface | Mini USB 1.1 / AV out |
| Video Out Format | NTSC & PAL (640 x 480 Video to TV) |
| Recording Medium | 4GB SD card (Supports up to 32GB) |
| Storage Format | Photo: JPEG (640 x 480) / Video: AVI (640 x 480) |
| Zoom | 2x Digital Zoom (In/Out) |
| Functions | 4-Way 360° Articulation, Mirror Reflecting, Adjustable Illuminant Intensity, Photo/Video Replay, 2-Photo Comparison |
| Language | Supports 15 Languages |
| Camera Cable & Probe | |
| Probe Diameter (OD) | 5.5mm (4-Way Articulation) |
| Cable Length | 2 Meters (Standard) / Options: 1M, 3M |
| Image Sensor | CMOS |
| Resolution | 720(H) x 525(V) Pixels |
| Field of View (FOV) | 67° |
| Focus Distance | 2cm to 7cm |
| Waterproof Rating | IP67 (Insertion Tube and Tip) |
| Illumination & Environment | |
| Light Source | 4 High-intensity LED Lamps |
| Illuminant Intensity | Adjustable (3500 Lux at 20.6mm) |
| Lamp Life | 10,000 hours (Average) |
| Operating Temp | -25°C to 60°C |
| Weight | 0.34 kg (Based on 1M length) |
| Certifications | CE / FCC / RoHS |
3.5 Inches LCD Monitor x 1
4-Way Articulating Insertion Probe (5.5mm) x 1
4 GB SD Card x 1
Power Adapter (5V) & USB Cable x 1
Video Cable x 1
User Manual x 1
Heavy-Duty Carrying Case x 1
Pipe Inspection
Engine Inpsection
